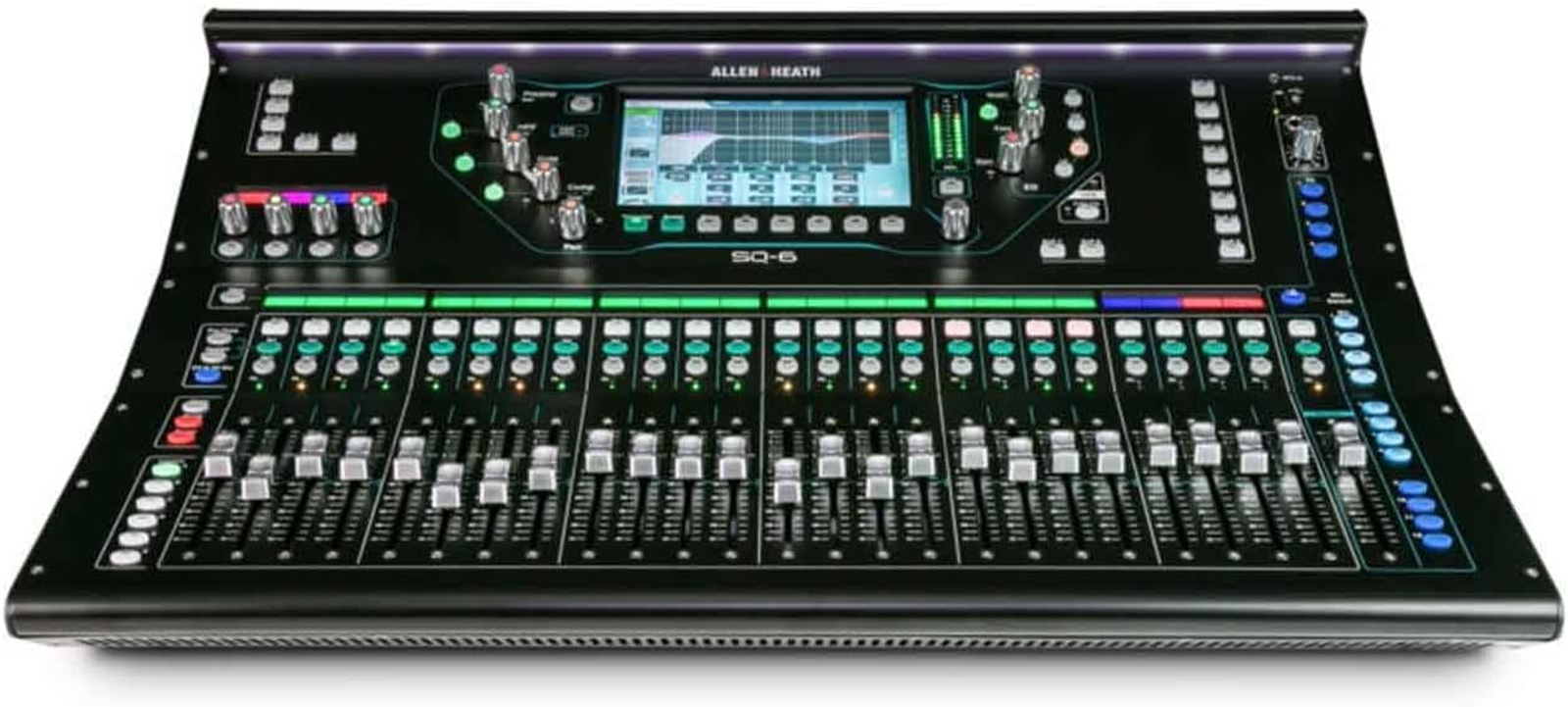

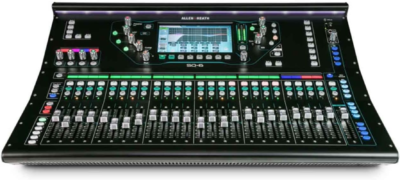

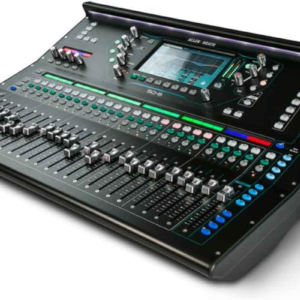

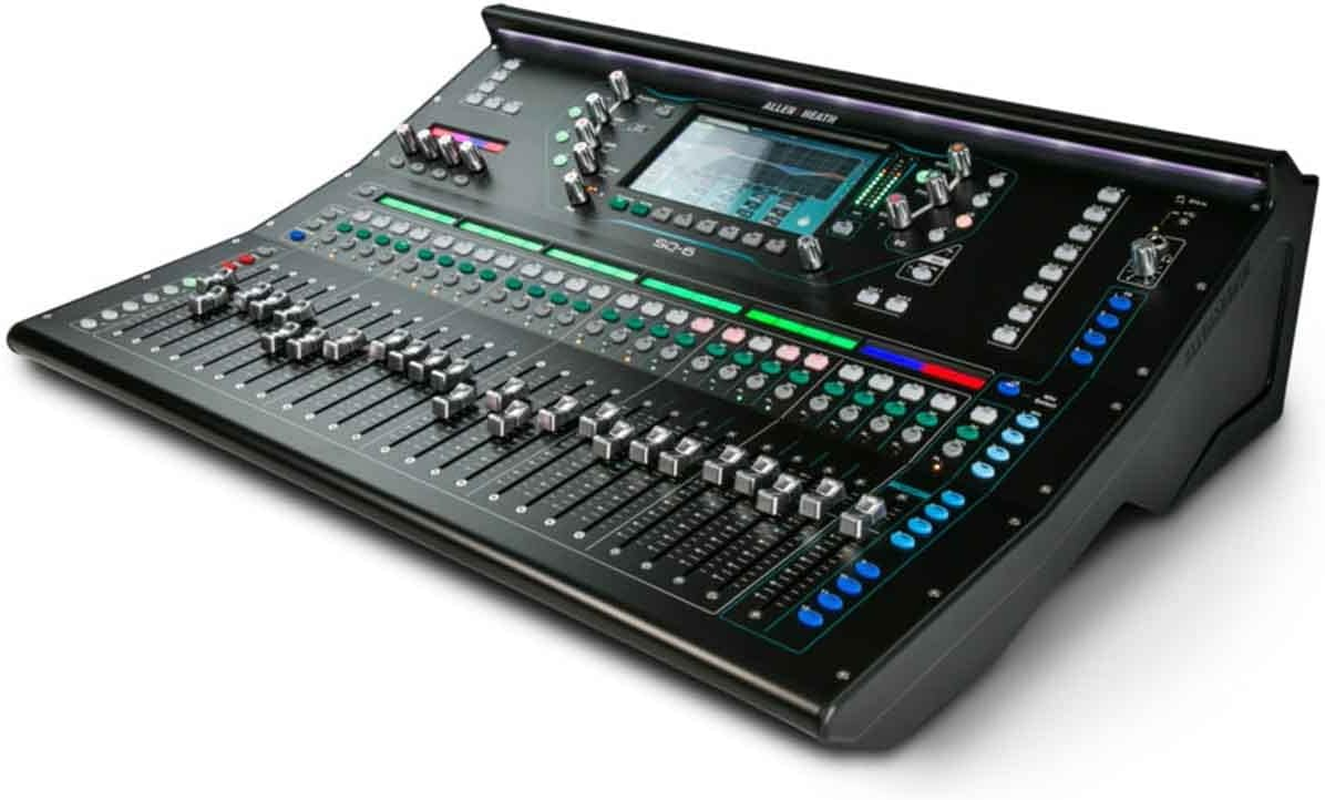

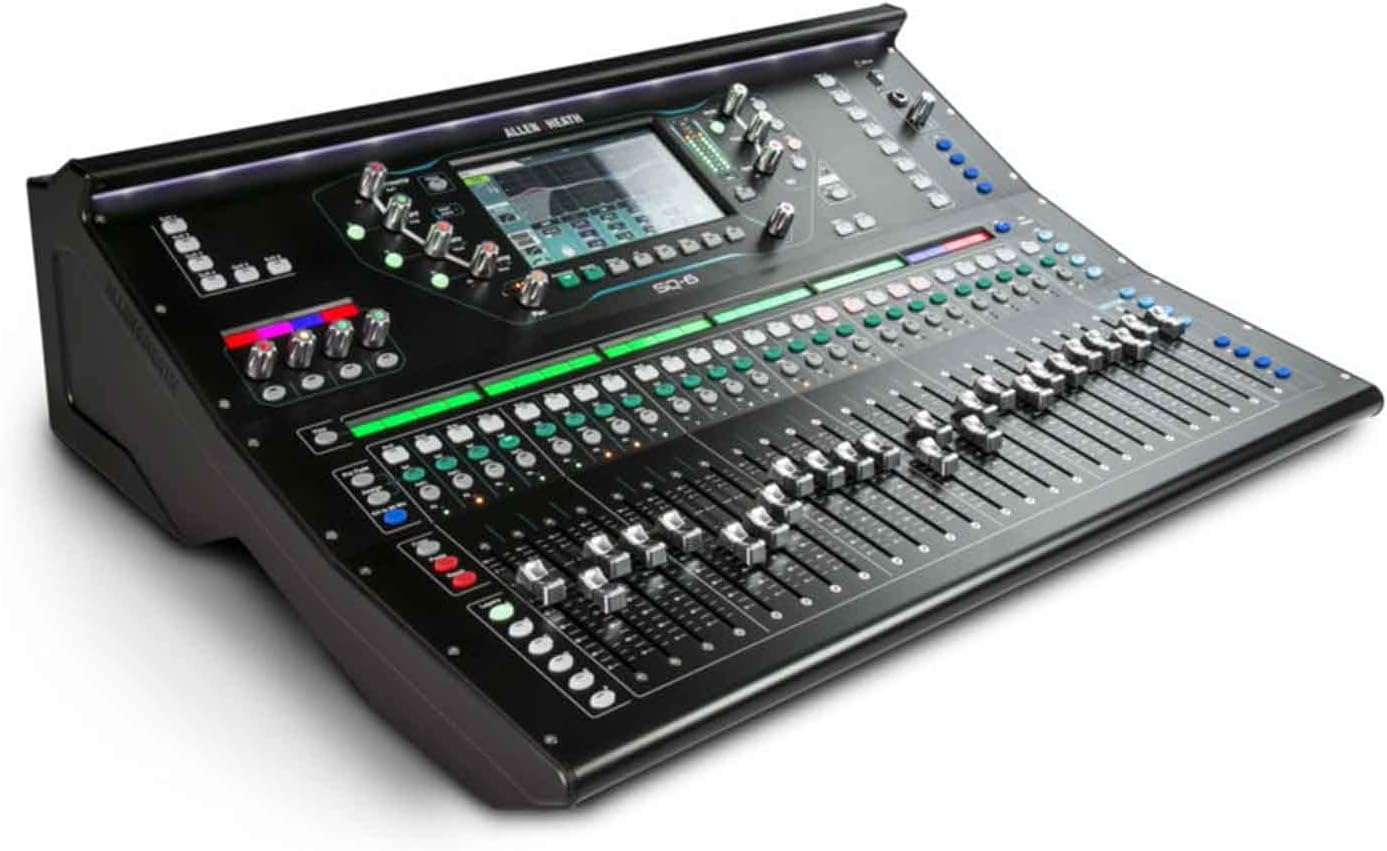

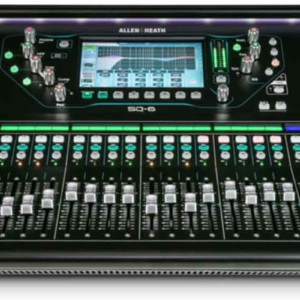

SQ-6 Digital Mixer, 48 Input Channels, 7″ Colour Touchscreen, 24 Onboard Preamps, 25 Faders, 16 Softkeys AES Digital Output

Allen & Heath SQ-6 Digital Mixer, 48 Input Channels, 36 Total Busses, 32×32 USB Audio Interface, 7″ colour touchscreen, 24 Onboard Preamps, 25 Faders, 16 SoftKeys, 4 Soft Rotaries, AES Digital Output

Key Features

• 48 Input Channels, 36 Total Busses, PAFL Bus, 12 Stereo Mix (Aux or Group) + Main

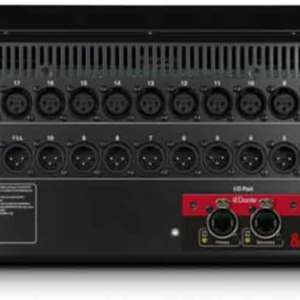

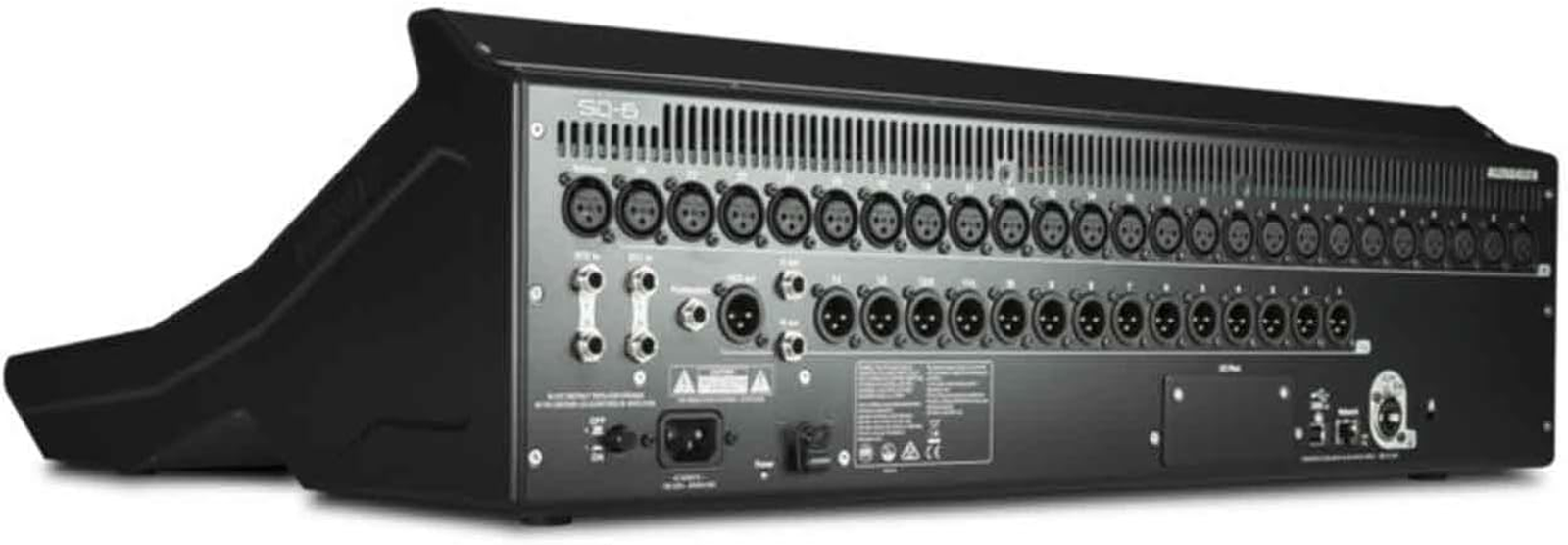

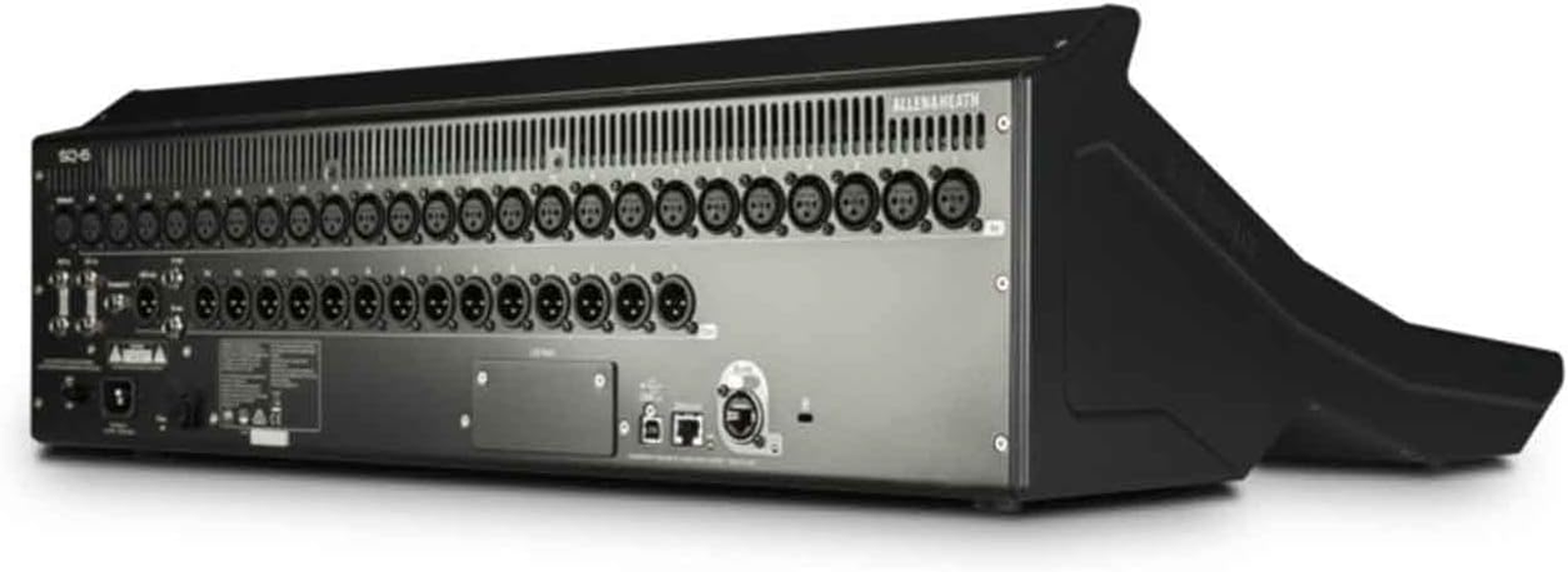

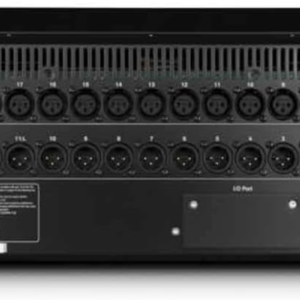

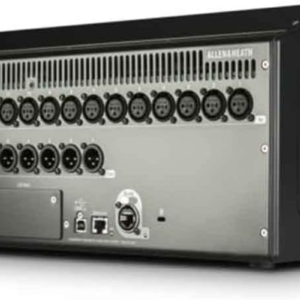

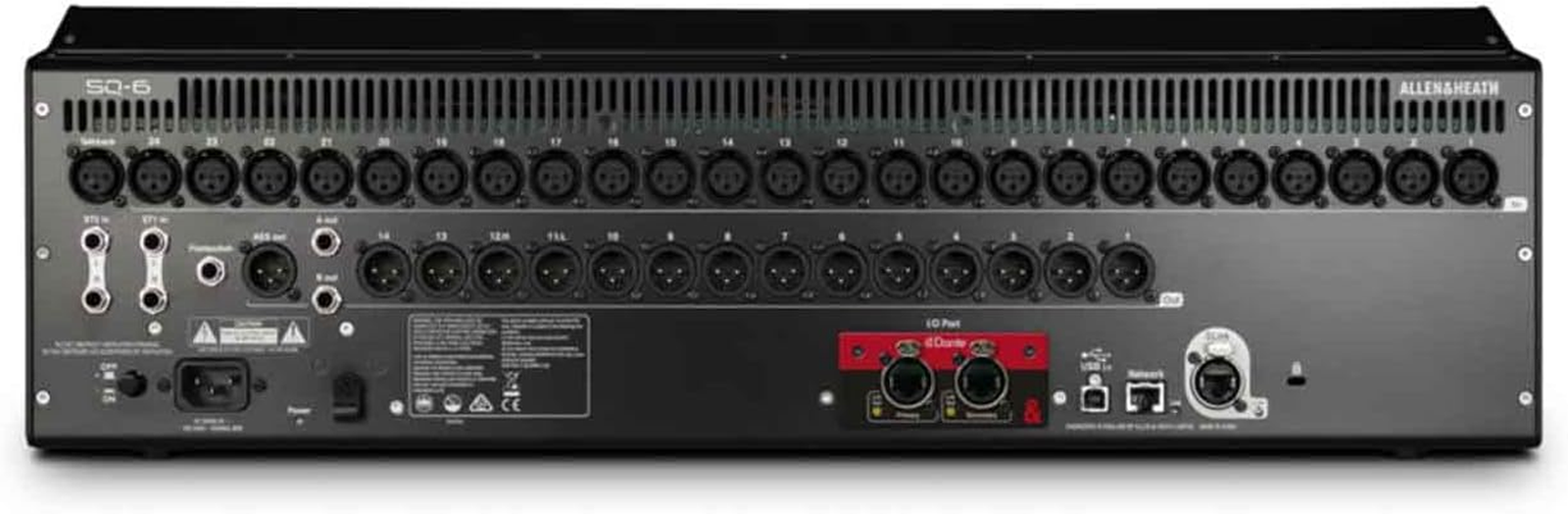

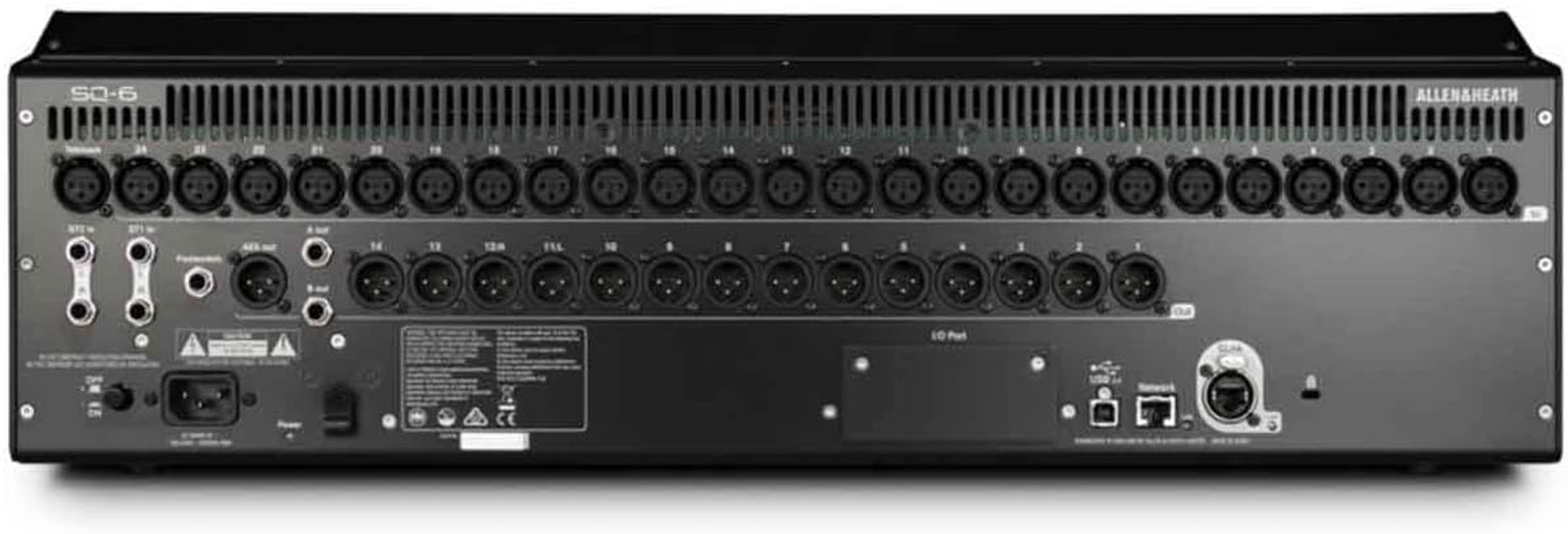

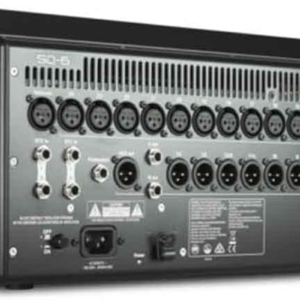

• 24 Local Mic Inputs (XLR), 2 1/4″ Stereo Inputs (TRS), (1) 3.5mm Stereo Input, 16 Assignable Local Outputs (14 XLR + 2 1/4″ TRS)
• Dedicated Talkback mic input (XLR), 1/4″ TRS Headphone out with dedicated control, SLink EtherCON connection for remote audio using dSnake/ME, DX or GigaACE/GX protocol (128×128 channels)
• I/O Port for Option Card (including 3 rd party protocols – Dante/Waves)
• 8 Mute Groups, DCA Groups, 8 Stereo FX with dedicated FX Returns
• DEEP Processing Ready, RackFX Effects suite
• 24+1 Faders with 6 Layers for 144 assignable Channel Strips

Specifications

• Mic/Line Inputs: Balanced XLR, fully recallable
• Input Sensitivity: -60 to +0dBu
• ST1, ST2 connectors: Balanced, 1/4″ TRS jack
• ST3 connector: Unbalanced, stereo 3.5mm Mini Jack
• XLR Outputs: Balanced, XLR
• AES Digital Output: Balanced XLR 2 channel, 96kHz sampling rate (Default with SRC Bypassed) Switchable output sample rates,44.1kHz/ 48kHz/ 88.2kHz/ (96kHz) 2.5Vpp balanced terminated 110G
• SLink Connection: Neutrik EtherCON (RJ45)
• I/O Port: Multi-channel I/O option module
• System: Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
• Frequency Response: +0/-0.5dB 20Hz to 20kHz
• Latency: less than 0.7mS, Local Mic Input to Main L/R
• Mains Power: 100-240V AC, 50/60Hz
• Max Power Consumption: 90W
• Dimensions (WxDxH): 25.1″ x 20.3″ x 7.8″ (Desk Mounted)
• Weigth: 32 lbs
• Frequency Response: +0/-0.5dB 20Hz to 20kHz
